Description

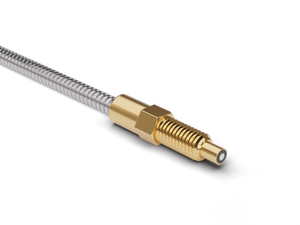

The Baumer FUE 100A1001 10258776 is a diffuse type fiber optic sensor with a sensing distance of 220 mm. It features a cylindrical threaded fiber optic head made of brass, measuring 6 mm in width and 30 mm in length. The sensor operates within a temperature range of -25 to +70 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support adaptable lenses or shortening of the fiber optics. The fiber optic cable is 100 cm long, made of glass, with a 4 mm² cross-section and a PUR jacket. The cable has a bending radius of 18 mm when fixed and 36 mm when mobile. The thread size is M6 x 0.75.
