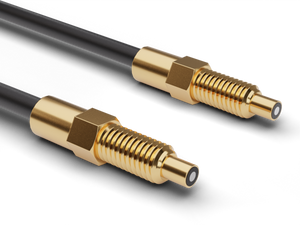

The Baumer FUE 100A1003 is a diffuse type fiber optic sensor with a sensing distance of 30 mm. It features a cylindrical threaded fiber optic head made of brass, measuring 3 mm in width and 17 mm in length. The sensor operates within a temperature range of -25 to +70 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support adaptable or integrated lenses. The fiber optic cable, made of glass, is 100 cm long with a cross section of 0.5 mm² and is encased in a PVC jacket. The cable has a bending radius of 7.5 mm when fixed and 15 mm when mobile. The sensor's thread size is M3 x 0.5.
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 30 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=3 mm
- Height / length (head):
- 17 mm
- Material (head):
- Brass
- Thread:
- M3 x 0.5
- Bending radius (fixed):
- 7.5 mm
- Bending radius (mobile):
- 15 mm
- Cable jacket diameter:
- 2.5 mm
- Material cable jacket:
- PVC
- Fiber cross section:
- 0.5 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 100 cm
- Datasheet:
- View
