Baumer FUE 100A2001

Baumer FUE 100A2001

Baumer
SKU:
10258792
Availability:
Contact us to confirm availability and lead times.
$276.62
Condition:
New
Current Stock:
Description

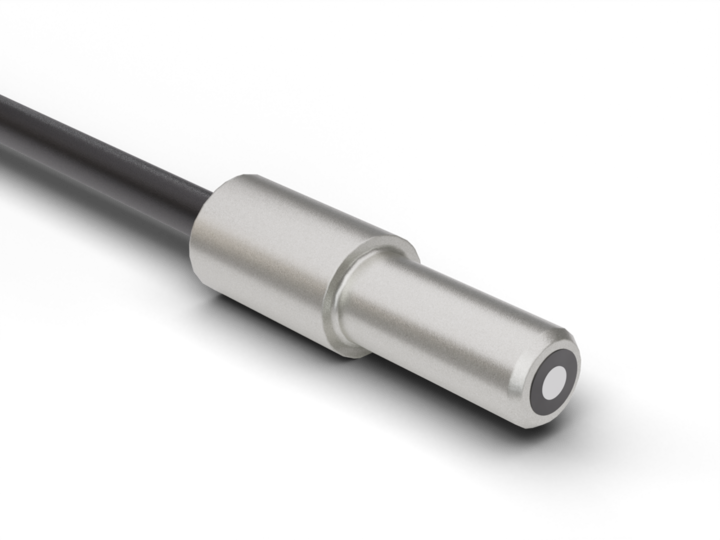

The Baumer FUE 100A2001 is a diffuse type fiber optic sensor with a smooth sensing head and a sensing distance of 220 mm. It features a cylindrical smooth fiber optic head made of aluminum, measuring 6 mm in width and 30 mm in length. The sensor operates within a temperature range of -25 to +70 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support adaptable or integrated lenses, and the fiber optics cannot be shortened. The fiber optic cable is 100 cm long, made of glass, with a 4 mm² cross-section and a PUR jacket. The cable has a bending radius of 18 mm when fixed and 36 mm when mobile.
Additional Information
Type:
Measuring mode: edges, center, width, gap
Version:
PosCon OXE7 - for very precise measurements
Measuring range (width):
48 … 72 mm
Measuring range (distance):
100 … 150 mm
Measuring frequency:
159 … 625 Hz
Resolution:
20 µm
Repeat accuracy:
± 10 µm
Smallest detectable object width:
0.7 mm
Smallest detectable gap:
1.5 mm
Smallest detectable step:
0.7 mm
Linearity error:
± 50 … 75 µm
Temperature drift:
< 0,03 % measured value/K
Power on indication:
LED green
Output indicator:
LED yellow / LED red
Light source:
Pulsed red laser diode
Wave length:
656 nm
Laser class:
1
Optical peak power max.:
15 mW
Adjustment:
Touch Display, RS485
Response time / release time:
3 … 12.4 ms
Voltage supply range +Vs:
15 … 28 VDC
Current consumption max. (no load):
150 mA
Output circuit:
Analog and RS 485
Output signal:
4 ... 20 mA / 0 ... 10 VDC
Switching output:
Push-pull
Output function:
Out 1 / Alarm
Output current:
100 mA
Baud rate:
115200, adjustable
Reverse polarity protection:
Yes, Vs to GND
Short circuit protection:
Yes
Width / diameter:
26 mm
Height / length:
74 mm
Depth:
55 mm
Design:
Rectangular, front view
Housing material:
Aluminum
Front (optics):
Glass
Connection types:
Connector M12 8 pin
Weight:
130 g
Ambient light immunity:
< 35 kLux
Operating temperature:
-20 … +50 °C
Protection class:
IP 67
Storage temperature:
-25 … +75 °C
Vibration (sinusoidal):
IEC 60068-2-6:2008 1.5 mm p-p at f = 10 - 57 Hz, 10 cycles per axis 10 g at f = 58 - 2000 Hz, 10 cycles per axis
Shock (semi-sinusoidal):
IEC 60068-2-27:2009 50 g / 11 ms resp. 100 g / 6 ms, 10 jolts per axis and direction 100 g / 2 ms, 5000 jolts per axis and direction
