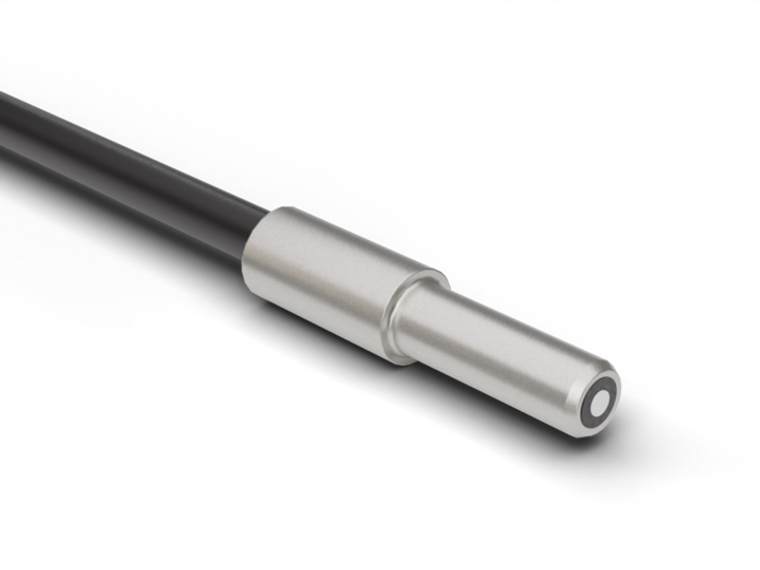

The Baumer FUE 100A2011 is a diffuse type fiber optic sensor with a smooth sensing head and a sensing distance of 115 mm. It features a cylindrical smooth fiber optic head with dimensions of 4 mm in width/diameter and 24 mm in height/length, made from aluminum. The sensor operates within a temperature range of -25 to +70 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support adaptable or integrated lenses, and the fiber optics cannot be shortened. The fiber optic cable is 100 cm long, made of glass, with a cross section of 2 mm², and is encased in a PUR jacket with a diameter of 4.5 mm. The cable has a fixed bending radius of 13.5 mm and a mobile bending radius of 27 mm.
- Particular characteristics:
- Smooth sensing head
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 115 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 24 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 13.5 mm
- Bending radius (mobile):
- 27 mm
- Cable jacket diameter:
- 4.5 mm
- Material cable jacket:
- PUR
- Fiber cross section:
- 2 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 100 cm
- Datasheet:
- View
