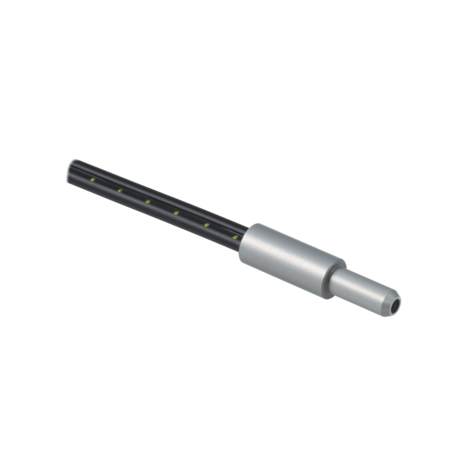

The Baumer FUE 200C2003 10123465 is a diffuse type fiber optic sensor with a smooth sensing head and a sensing distance of 318 mm. It features a cylindrical smooth fiber optic head with a diameter of 1 mm and dimensions of 6 mm in width/diameter and 24 mm in height/length, made from aluminum. The sensor operates within a temperature range of -30 to +70 °C and has an exit angle of 60°. The fiber optics can be shortened to the desired length and are encased in a plastic cable with a PE jacket, measuring 200 cm in length with a cable jacket diameter of 2.2 mm. The bending radius is 30 mm for fixed installations and 15 mm for mobile applications. This model does not support infrared light compatibility at 1450 nm, nor does it have an integrated or adaptable lens.
- Particular characteristics:
- Smooth sensing head
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 318 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -30 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- Yes
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- NoDiameter Fiber=1 mm
- Width / diameter (head):
- 6 mm
- Height / length (head):
- 24 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 30 mm
- Bending radius (mobile):
- 15 mm
- Cable jacket diameter:
- 2.2 mm
- Material cable jacket:
- PE
- Material (fiber optic cable):
- Plastic
- Length (fiber optic cable):
- 200 cm
- Datasheet:
- View
