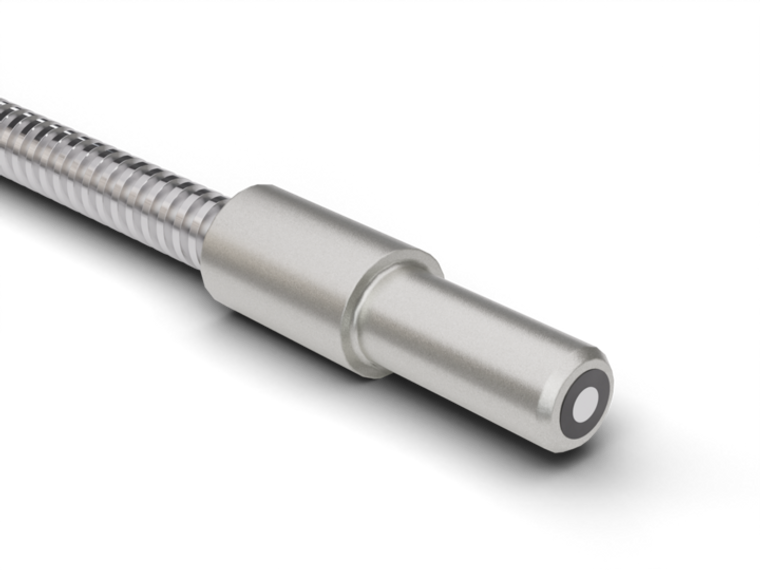

The Baumer FUF 025B2002 10210370 is a diffuse type fiber optic sensor with a smooth sensing head and a sensing distance of 210 mm. It features a cylindrical smooth fiber optic head made of aluminum, measuring 6 mm in width and 30 mm in length. The sensor operates within a temperature range of -25 to +250 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not allow for shortening of the fiber optics or adaptation of the lens. The bending radius is 20 mm for fixed installations and 36 mm for mobile applications. The cable jacket, made of brass chromium plated, has a diameter of 6 mm, and the fiber optic cable, made of glass, has a cross section of 3 mm² and is 25 cm long.
- Particular characteristics:
- Smooth sensing head
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 210 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -25 +250 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=6 mm
- Height / length (head):
- 30 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 20 mm
- Bending radius (mobile):
- 36 mm
- Cable jacket diameter:
- 6 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 3 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 25 cm
- Datasheet:
- View
