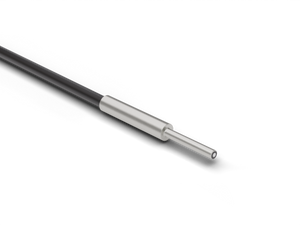

The Baumer FUF 025B2004 10215049 is a diffuse type fiber optic sensor with a smooth, cylindrical sensing head made of aluminum. It features a fine sleeve and a sensing distance of 25 mm. The sensor operates within a temperature range of -25 to +250 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not allow for fiber optics to be shortened or the integration of adaptable lenses. The head dimensions are 1.5 mm in width/diameter and 25 mm in height/length. The fiber optic cable is 25 cm long, made of glass, with a cross section of 0.5 mm², and is encased in a brass chromium-plated jacket. The fixed bending radius is 15 mm, and the mobile bending radius is 24 mm, with a cable jacket diameter of 4 mm.
- Particular characteristics:
- Smooth sensing head Fine sleeve
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 25 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -25 +250 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=1.5 mm
- Height / length (head):
- 25 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 24 mm
- Cable jacket diameter:
- 4 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 0.5 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 25 cm
- Datasheet:
- View
