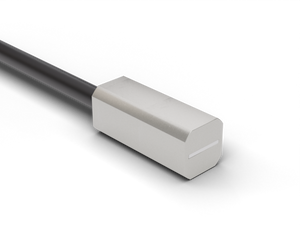

Baumer FUF 050A3001 10258783 is a diffuse type fiber optic sensor with a sensing distance of 210 mm and a fine light barrier array. It features a rectangular fiber optic head made of aluminum, measuring 10 mm in width, 25 mm in length, and 16 mm in depth. The sensor operates within a temperature range of -25 to +250 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not allow for shortening of the fiber optics or adaptation of the lens. The fiber optic cable is 50 cm long, made of glass, with a brass chromium-plated jacket and a diameter of 6 mm. The bending radius is 20 mm for fixed installations and 36 mm for mobile applications. The fiber cross-section is 3 mm².
- Particular characteristics:
- Array (fine light barrier)
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 210 mm
- Fiber optic head:
- Rectangular
- Operating temperature:
- -25 +250 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesArray width=8 mm
- Width / diameter (head):
- 10 mm
- Height / length (head):
- 25 mm
- Depth (head):
- 16
- Material (head):
- Aluminum
- Bending radius (fixed):
- 20 mm
- Bending radius (mobile):
- 36 mm
- Cable jacket diameter:
- 6 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 3 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
