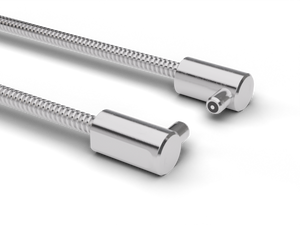

The Baumer FUF 050A4004 10218385 is a diffuse type fiber optic sensor with a smooth, cylindrical sensing head designed for side view applications. It features a sensing distance of 35 mm and an exit angle of 60°. The sensor operates within a temperature range of -25 to +120 °C and is compatible with infrared light at 1450 nm. The head measures 4 mm in width/diameter and 16 mm in height/length, made from durable aluminum. The fiber optic cable, with a length of 50 cm, is constructed from glass and has a brass chromium-plated jacket with a diameter of 4 mm. The cable's bending radius is 15 mm when fixed and 24 mm when mobile. This sensor does not allow for fiber shortening or lens adaptation.
- Particular characteristics:
- Smooth sensing head Side view
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 35 mm
- Fiber optic head:
- Cylindrical smooth, side view
- Operating temperature:
- -25 +120 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 16 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 24 mm
- Cable jacket diameter:
- 4 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 0.5 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
