Baumer FUF 050B1001 10258983
Baumer
$580.00

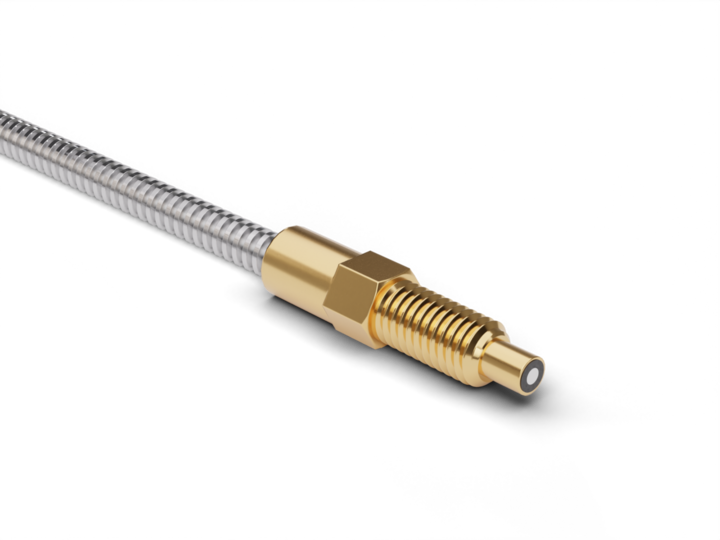

The Baumer FUF 050B1001 10258983 is a diffuse type fiber optic sensor with a sensing distance of 230 mm. It features a cylindrical threaded fiber optic head made of brass, measuring 6 mm in width and 30 mm in length, with an M6 x 0.75 thread. The sensor operates within a temperature range of -25 to +250 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support adaptable or integrated lenses, and the fiber optics cannot be shortened. The fiber optic cable, made of glass, is 50 cm long with a cross section of 4 mm², housed in a brass chromium-plated jacket with a diameter of 6 mm. The fixed bending radius is 20 mm, and the mobile bending radius is 36 mm. For more details, you can view the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_FUF-050B1001_EN_20240919_DS.pdf?mediaPK=9203256786974).
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 230 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -25 +250 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=6 mm
- Height / length (head):
- 30 mm
- Material (head):
- Brass
- Thread:
- M6 x 0.75
- Bending radius (fixed):
- 20 mm
- Bending radius (mobile):
- 36 mm
- Cable jacket diameter:
- 6 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 4 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
