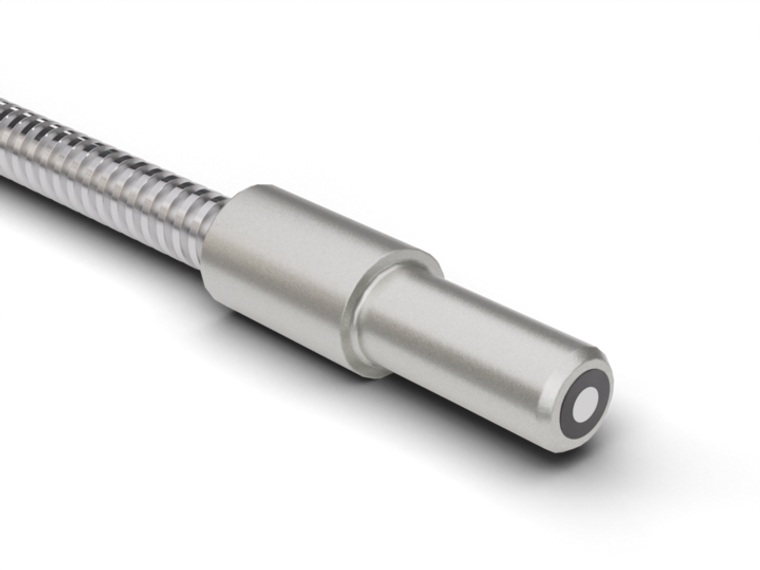

The Baumer FUF 100A2003 10210847 is a diffuse type fiber optic sensor with a smooth sensing head and a sensing distance of 200 mm. It operates within a temperature range of -25 to +250 °C and features a 60° exit angle. The cylindrical smooth fiber optic head measures 6 mm in width/diameter and 30 mm in height/length, made from aluminum. The sensor is designed with a fixed bending radius of 20 mm and a mobile bending radius of 36 mm. The cable jacket, made from brass chromium plated, has a diameter of 6 mm. The fiber optic cable, constructed from glass, has a cross section of 3 mm² and is 100 cm in length. This model is compatible with infrared light at 1450 nm but does not support shortening of the fiber optics, nor does it have an integrated or adaptable lens.
- Particular characteristics:
- Smooth sensing head
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 200 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -25 +250 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=6 mm
- Height / length (head):
- 30 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 20 mm
- Bending radius (mobile):
- 36 mm
- Cable jacket diameter:
- 6 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 3 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 100 cm
- Datasheet:
- View
