Description

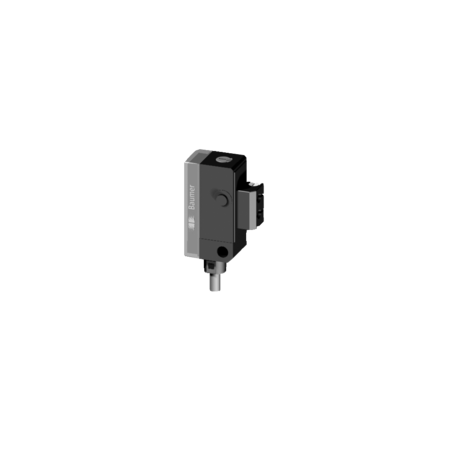

The Baumer FVDK 10N5101 10162867 is a high-performance sensor equipped with a pulsed red LED light source and a wavelength of 660 nm. It features a yellow LED light indicator and a flashing light indicator for alignment or soiled lens detection. The sensor offers adjustable settings via a 270° potentiometer and operates with a quick response and release time of less than 1 ms. It supports a voltage supply range of 10 to 30 VDC and has a typical current consumption of 20 mA, with a maximum of 30 mA. The output function can be set to light or dark operate, and it includes an NPN output circuit with a maximum output current of 100 mA. Safety features include short circuit and reverse polarity protection. The compact, rectangular design measures 10.4 mm in width, 27 mm in height, and 14 mm in depth, with a durable ASA plastic housing. It connects via a 4-pin, 2-meter cable and operates within a temperature range of -25 to +55 °C. The sensor is rated at IP 40 for protection against solid objects.
