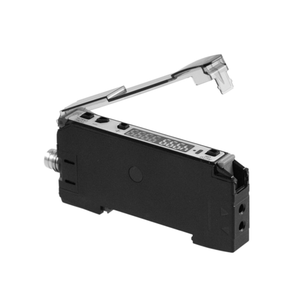

The Baumer FVDK 10P66Y0 11045445 is a high-performance sensor equipped with a pulsed red LED light source and a wavelength of 645 nm. It features a dual 4-digit display and a yellow LED output indicator for clear status updates. The sensor offers a teach-in adjustment for easy setup and is capable of suppressing reciprocal influence. It has a fast response and release time ranging from 0.25 to 1 ms, adjustable to suit various applications. The device operates within a voltage supply range of 10.8 to 26.4 VDC and consumes a maximum of 30 mA with no load. It includes a voltage drop of less than 2.1 VDC and can switch between light and dark operating modes. The output circuit is PNP with an output current of 100 mA, and it features on/off delays from 1 to 5000 ms. The sensor is designed with a compact, rectangular polycarbonate/ABS housing measuring 10 mm in width, 33.8 mm in height, and 70.2 mm in depth. It connects via a 2-meter cable and operates in temperatures ranging from -20 to +55 °C. Safety features include short circuit and reverse polarity protection. The sensor is rated IP 40 for protection against solid objects.
- Light source:
- Pulsed red LED
- Light indicator:
- 2 x 4-digit display
- Output indicator:
- LED yellow
- Adjustment:
- Teach-in
- Wave length:
- 645 nm
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- 0.25 1 ms (adjustable)
- Voltage supply range +Vs:
- 10.8 26.4 VDC
- Current consumption max. (no load):
- 30 mA
- Voltage drop Vd:
- <2.1 VDC
- Output function:
- Light / dark operate switchable
- On / off delay:
- 1 5000 ms
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 10 mm
- Height / length:
- 33.8 mm
- Depth:
- 70.2 mm
- Design:
- Rectangular
- Housing material:
- Polycarbonate/ABS
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -20 +55 °C
- Protection class:
- IP 40
