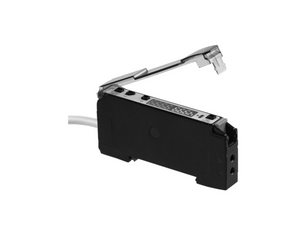

The Baumer FVDK 10P66YM 11045461 is a high-performance sensor equipped with a pulsed red LED light source and a wavelength of 645 nm. It features a dual 4-digit display and a yellow LED output indicator for clear status visibility. This sensor offers versatile functionality with light/dark operation switchability and an adjustable response time/release time ranging from 0.25 to 1 ms. It supports a voltage supply range of 10.8 to 26.4 VDC and has a maximum current consumption of 30 mA with a voltage drop of less than 2.1 VDC. The device includes teach-in adjustment for easy setup and is designed with PNP output circuitry capable of handling an output current up to 100 mA. Additional features include short circuit and reverse polarity protection, on/off delay settings from 1 to 5000 ms, and suppression of reciprocal influence to prevent interference from other devices. The sensor's compact, rectangular design measures 10 mm in width, 33.8 mm in height, and 70.2 mm in depth, housed in a durable polycarbonate/ABS material. It comes with a 2-meter cable for connectivity and operates within a temperature range of -20 to +55 °C. The Baumer FVDK 10P66YM is IP 40 rated, indicating protection against solid objects larger than 1 mm but not against water.
- Version:
- Master
- Light source:
- Pulsed red LED
- Light indicator:
- 2 x 4-digit display
- Output indicator:
- LED yellow
- Adjustment:
- Teach-in
- Wave length:
- 645 nm
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- 0.25 1 ms (adjustable)
- Voltage supply range +Vs:
- 10.8 26.4 VDC
- Current consumption max. (no load):
- 30 mA
- Voltage drop Vd:
- <2.1 VDC
- Output function:
- Light / dark operate switchable
- On / off delay:
- 1 5000 ms
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 10 mm
- Height / length:
- 33.8 mm
- Depth:
- 70.2 mm
- Design:
- Rectangular
- Housing material:
- Polycarbonate/ABS
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -20 +55 °C
- Protection class:
- IP 40
