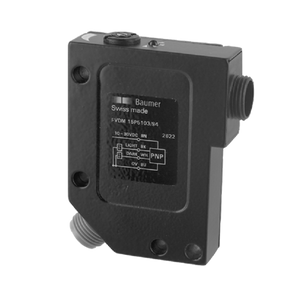

Baumer FVDM 15N5103 10234639
Baumer
$459.10
The Baumer FVDM 15N5103 10234639 is a high-performance sensor equipped with a pulsed infrared diode light source and a wavelength of 880 nm. It features a yellow LED light indicator and an additional LED for alignment or soiled lens detection, which flashes to alert users. The sensor offers precise adjustability through a 20-turn potentiometer and operates efficiently with a response and release time of less than 1 ms. Designed for versatility, it supports a voltage supply range of 10 to 30 VDC and has a typical current consumption of 30 mA, with a maximum of 46 mA. The output function can be set to light or dark operate, and it includes an NPN output circuit with a maximum output current of 200 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact, rectangular die-cast aluminum housing measures 15 mm in width, 60 mm in height, and 45 mm in depth, and it is equipped with a 4-pin, 2-meter cable for connectivity. Suitable for harsh environments, it operates within a temperature range of -25 to +65 °C and boasts an IP 65 protection class, ensuring durability and reliability in various industrial applications.
- Light source:
- Pulsed infrared diode
- Light indicator:
- LED yellow
- Alignment / soiled lens indicator:
- LED, flashing
- Adjustment:
- Potentiometer, 20 turn
- Wave length:
- 880 nm
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 46 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 15 mm
- Height / length:
- 60 mm
- Depth:
- 45 mm
- Design:
- Rectangular
- Housing material:
- Die-cast aluminum
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -25 +65 °C
- Protection class:
- IP 65
- Datasheet:
- View
