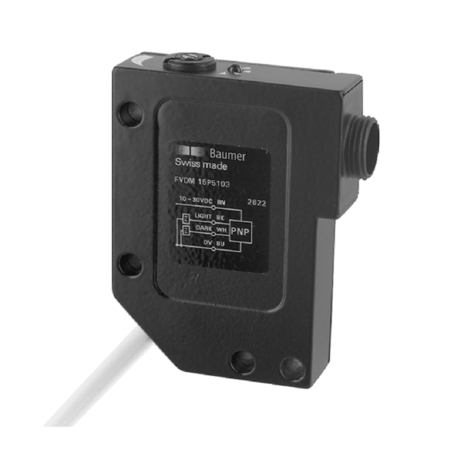

The Baumer FVDM 15P5130 10234519 is a high-performance sensor equipped with a pulsed infrared diode light source and a wavelength of 880 nm. It features a yellow LED light indicator and an additional LED for alignment or soiled lens detection, which flashes for easy maintenance. The sensor offers precise adjustability through a 20-turn potentiometer and operates efficiently with a response time of less than 0.1 ms. Designed for versatility, it supports a voltage supply range of 10 to 30 VDC and has a typical current consumption of 50 mA. The output function can be set to light or dark operate, and it includes a PNP output circuit with a maximum output current of 200 mA. Safety features include short circuit and reverse polarity protection. The compact, rectangular design measures 15 mm in width, 60 mm in length, and 45 mm in depth, with a robust die-cast aluminum housing. It connects via a 4-pin, 2-meter cable and operates within a temperature range of -25 to +65 °C. The sensor is IP 65 rated, ensuring protection against dust and water ingress. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_FVDM-15P5130_EN_20240917_DS.pdf?mediaPK=9202428805150).
- Light source:
- Pulsed infrared diode
- Light indicator:
- LED yellow
- Alignment / soiled lens indicator:
- LED, flashing
- Adjustment:
- Potentiometer, 20 turn
- Wave length:
- 880 nm
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- < 0.1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 60 mA
- Current consumption typ.:
- 50 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 15 mm
- Height / length:
- 60 mm
- Depth:
- 45 mm
- Design:
- Rectangular
- Housing material:
- Die-cast aluminum
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -25 +65 °C
- Protection class:
- IP 65
- Datasheet:
- View
