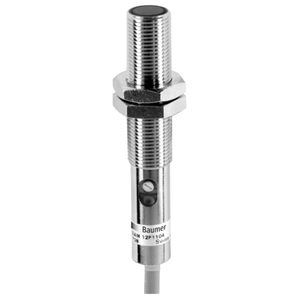

The Baumer FZAM 12P3104/S14 10234808 is an intensity difference sensor with a sensing distance of 30 to 200 mm. It features a flashing light indicator for alignment or soiled lens detection and a yellow LED light indicator. Sensitivity can be adjusted via a 270° potentiometer. The sensor includes suppression of reciprocal influence and utilizes a pulsed infrared diode with a wavelength of 880 nm. It has a fast response and release time of less than 1 ms. Operating on a voltage supply range of 10 to 30 VDC, it consumes a maximum of 42 mA with no load and typically 24 mA. The output function is dark operate with a PNP output circuit and can handle an output current of 200 mA. It includes safety features such as short circuit and reverse polarity protection. The sensor's cylindrical threaded design measures 12 mm in width/diameter and 80 mm in height/length, with a brass nickel-plated housing and a PC front optics. It connects via an M12 4-pin connector and is rated IP 65 for protection against dust and water, suitable for operating temperatures from -25 to +65 °C.
- Type:
- Intensity difference
- Sensing distance Tw:
- 30 200 mm
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensitivity adjustment:
- Potentiometer, 270°
- Suppression of reciprocal influence:
- YesLight source=Pulsed infrared diode
- Wave length:
- 880 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 42 mA
- Current consumption typ.:
- 24 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Dark operate
- Output circuit:
- PNP
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12 mm
- Height / length:
- 80 mm
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Front (optics):
- PC
- Connection types:
- Connector M12 4 pin
- Protection class:
- IP 65
- Operating temperature:
- -25 +65 °C
- Datasheet:
- View
