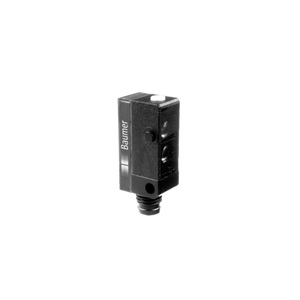

Baumer FZDK 10P5101 10139961

Baumer FZDK 10P5101 10139961

Baumer
SKU:
10139961
Availability:
Contact us to confirm availability and lead times.
$419.40
Condition:
New
Current Stock:
Description
The Baumer FZDK 10P5101 10139961 is an intensity difference sensor with a sensing distance of 5 to 200 mm. It features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. Sensitivity can be adjusted via a 270° potentiometer. The sensor is equipped with a pulsed red LED light source with a wavelength of 660 nm and boasts a fast response and release time of less than 1 ms. It operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 20 mA and a maximum of 30 mA. The output function can be set to light or dark operate, and it includes a PNP output circuit with a maximum output current of 100 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 10.4 mm in width, 27 mm in length, and 14 mm in depth, with a rectangular, plastic (ASA) housing and PMMA front optics. It connects via a 4-pin, 2-meter cable and is rated IP 65 for protection against dust and water, suitable for operating temperatures ranging from -25 to +65 °C.
Additional Information
Type:
Intensity difference
Sensing distance Tw:
5 … 200 mm
Alignment / soiled lens indicator:
Flashing light indicator
Light indicator:
LED yellow
Sensitivity adjustment:
Potentiometer, 270°
Suppression of reciprocal influence:
YesLight source=Pulsed red LED
Wave length:
660 nm
Response time / release time:
< 1 ms
Voltage supply range +Vs:
10 … 30 VDC
Current consumption max. (no load):
30 mA
Current consumption typ.:
20 mA
Voltage drop Vd:
<1.8 VDC
Output function:
Light / dark operate
Output circuit:
PNP
Output current:
100 mA
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Width / diameter:
10.4 mm
Height / length:
27 mm
Depth:
14 mm
Design:
Rectangular
Housing material:
Plastic (ASA)
Front (optics):
PMMA
Connection types:
Cable 4 pin, 2 m
Protection class:
IP 65
Operating temperature:
-25 … +65 °C
