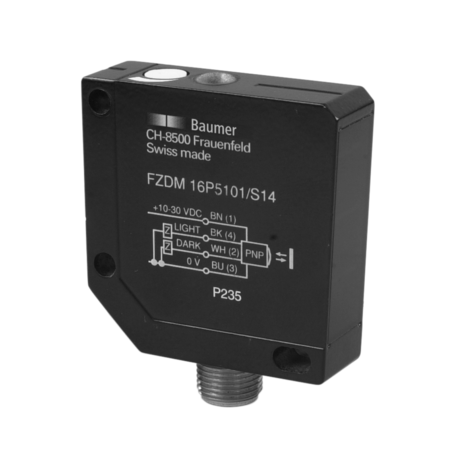

The Baumer FZDM 16P5101/S14 is an intensity difference sensor with a sensing distance of less than 400 mm. It features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. Sensitivity can be adjusted via a 270° potentiometer. The sensor includes suppression of reciprocal influence and utilizes a pulsed infrared diode with a wavelength of 880 nm. It has a fast response and release time of less than 1 ms. Operating on a voltage supply range of 10 to 30 VDC, it consumes a maximum of 41 mA with no load and typically 29 mA. The output function can operate in light or dark conditions, and it includes a PNP output circuit with a maximum output current of 200 mA. Safety features include short circuit and reverse polarity protection. The sensor measures 15.4 mm in width, 50 mm in height and depth, and is housed in die-cast zinc with a PMMA front optics. It connects via an M12 4-pin connector and is rated IP 67 for protection against dust and water, suitable for operating temperatures from -25 to +65 °C.
- Type:
- Intensity difference
- Sensing distance Tw:
- < 400 mm
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensitivity adjustment:
- Potentiometer, 270°
- Suppression of reciprocal influence:
- YesLight source=Pulsed infrared diode
- Wave length:
- 880 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 41 mA
- Current consumption typ.:
- 29 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 15.4 mm
- Height / length:
- 50 mm
- Depth:
- 50 mm
- Design:
- Rectangular
- Housing material:
- Die-cast zinc
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -25 +65 °C
- Datasheet:
- View
