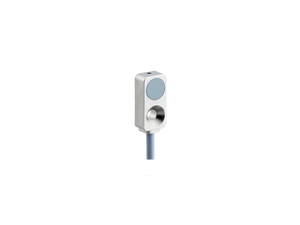

The Baumer IF08.D02S-F16.UA1Z.7WCU 11173270 is a high-precision sensor with a flush mounting type and a measuring distance of 0 to 2 mm. It offers exceptional resolution, less than 0.001 mm statically and less than 0.005 mm dynamically, with a repeat accuracy of 0.02 mm and a linearity error of ±120 µm. The sensor is designed to minimize temperature drift, which is maintained at ±5% of full scale, and has a rapid response time of less than 1 ms. It operates on a voltage supply range of 12 to 30 VDC and consumes a maximum of 8 mA with no load. The output circuit is analog, ranging from 0 to 10 VDC, and it supports a load resistance of over 4000 Ohm. Safety features include short circuit and reverse polarity protection. The sensor's housing is made of die-cast zinc nickel-plated material, with a PBT sensing face, and it measures 8 mm in width and 16 mm in length. It connects via a 2-meter PUR cable and can operate within a temperature range of 10 to +60 °C. The device is robust, with an IP 67 protection class, ensuring durability and reliability in various industrial environments.
- Mounting type:
- Flush
- Measuring distance Sd:
- 0 2 mm
- Resolution:
- < 0.001 mm (stat.) < 0.005 mm (dynam.)
- Repeat accuracy:
- 0.02 mm
- Linearity error:
- ± 120 µm
- Temperature drift:
- ± 5 % (Full Scale)
- Response time (factory characteristic):
- < 1 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 8 mA
- Output circuit:
- Analog 0 ... 10 VDC
- Load resistance:
- > 4000 Ohm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- PBT
- Housing material:
- Die-cast zinc nickel plated
- Dimension:
- 8 mm
- Housing length:
- 16 mm
- Connection types:
- Cable PUR, 2 m
- Tightening torque max.:
- 0.8 Nm
- Operating temperature:
- 10 +60 °C
- Protection class:
- IP 67
