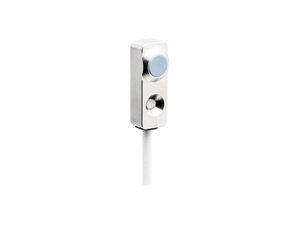

The Baumer IF08.D03L-Q25.UA1E.7VCU is a quasi-flush mounted sensor with linearized output, designed for precise distance measurement ranging from 0 to 3 mm. It offers high sensitivity at 3.33 V/mm and boasts excellent resolution, with static resolution less than 0.003 mm and dynamic resolution varying with distance. The sensor ensures repeat accuracy of 0.01 mm and features external teach-in adjustment for ease of use. It maintains linearity with an error margin of ± 15 µm up to 2 mm and ± 90 µm up to 3 mm, and experiences minimal temperature drift. The response time is less than 2 ms, ensuring quick feedback. It operates on a voltage supply range of 12 to 30 VDC and has a maximum current consumption of 10 mA when unloaded. The output circuit is analog 0 to 10 VDC, and it supports a load resistance of over 4000 Ohm. Safety features include short circuit and reverse polarity protection. The sensor is housed in stainless steel with a PBT sensing face, measures 8 mm in width, and has a housing length of 24.6 mm. It connects via a 2 m PUR cable and operates within a temperature range of -20 to +70 °C. It is IP 67 rated, indicating high protection against dust and water ingress.
- Mounting type:
- Quasi-flush
- Special type:
- Linearized
- Measuring distance Sd:
- 0 3 mm
- Sensitivity:
- 3,33 V/mm
- Resolution:
- < 0.003 mm (stat.) < 0.009 mm (dynam.,S = 0 ... 2 mm) < 0.018 mm (dynam.,S = 0 ... 3 mm)
- Repeat accuracy:
- 0.01 mm
- Adjustment:
- External Teach-in
- Linearity error:
- ± 15 µm (S = 0 ... 2 mm) ± 90 µm (S = 0 ... 3 mm)
- Temperature drift:
- ± 2 % (Full Scale: S = 0 ... 2 mm) ± 6 % (Full Scale: S = 0 ... 3 mm)
- Response time (factory characteristic):
- < 2 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- Analog 0 ... 10 VDC
- Load resistance:
- > 4000 Ohm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 8 mm
- Housing length:
- 24.6 mm
- Connection types:
- Cable PUR, 2 m
- Tightening torque max.:
- 0.8 Nm
- Operating temperature:
- -20 +70 °C
- Protection class:
- IP 67
