Baumer IF200.D10L-Q41.DPMO.71N/A014
Baumer
$566.00

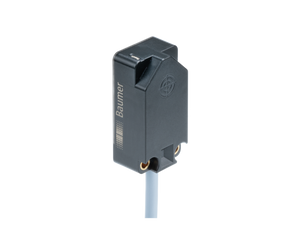

The Baumer IF200.D10L-Q41.DPMO.71N/A014 is a high-precision, non-flush distance measuring sensor with a measuring range of 0 to 10 mm and a resolution of less than 0.020 mm in High Accuracy Mode. It features dual-channel IO-Link communication and offers various adjustment options including qTeach and single point, two point, or window teaching methods. The sensor has a linearity error of ±40 µm for distances up to 8 mm and ±60 µm up to 10 mm, with a temperature drift of ±2% of full scale. It includes a green LED for power indication and a yellow LED for output status. The response time can be as low as 0.6 ms in High Speed Mode, and it supports switching frequencies up to 800 Hz. The sensor operates on a 12 to 30 VDC supply, has a maximum current consumption of 25 mA, and includes short circuit and reverse polarity protection. It is designed with a rectangular SAN housing, measures 20 mm in width and 41 mm in length, and is equipped with an M8 4-pin connector. Suitable for operating temperatures from -25 to +75°C, it is IP 67 rated for dust and water resistance.
- Mounting type:
- Non-flush
- Special type:
- Linearized
- Particular characteristics:
- IO-Link dual channel
- Type:
- Distance measuring
- Measuring distance Sd:
- 0 10 mm
- Resolution:
- < 0.020 mm (High Accuracy Mode)
- Repeat accuracy:
- 0.020 mm
- Adjustment:
- qTeach IO-Link
- Teach:
- Single point, Two point, Window
- Linearity error:
- ± 40 µm (S = 0 ... 8 mm) ± 60 µm (S = 0 ... 10 mm)
- Temperature drift:
- ± 2 % (Full Scale)
- Hysteresis:
- < 99 % (adjustable)
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Response time (factory characteristic):
- < 0.6 ms (High Speed Mode) < 0.9 ms (Standard Mode) < 2.3 ms (Robust Mode) < 10.5 ms (High Accuracy Mode)
- Switching frequency:
- 800 Hz (High Speed Mode) 500 Hz (Standard Mode) 150 Hz (Robust Mode) 30 Hz (High Accuracy Mode)
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 25 mA
- Output circuit:
- PNP Push-pull Analog 0 ... 10 VDC IO-Link
- Load resistance:
- > 10 kOhm
- Output current:
- 100 mA
- Voltage drop Vd:
- <2.5 VDC
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Baud rate:
- 230.4 kBaud (COM 3)
- Design:
- Rectangular
- Material (sensing face):
- SAN
- Housing material:
- SAN
- Dimension:
- 20 mm
- Housing length:
- 41 mm
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
