Description

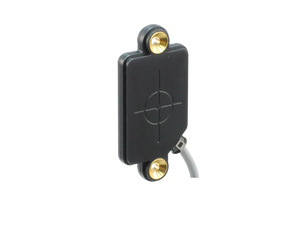

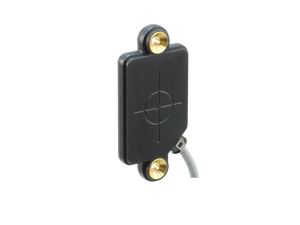

The Baumer IF250.D12L-N52.GP1I.71CV is a high-precision, non-flush distance measuring sensor with a measuring range of 0 to 12 mm and a resolution of less than 0.12 mm in High Accuracy Mode. It features repeat accuracy of 0.12 mm and linearity errors of ±150 µm for distances up to 9 mm and ±400 µm up to 12 mm. The sensor supports various adjustment methods including IO-Link and can be taught through single point, two point, or window methods. It offers multiple response times ranging from less than 1.8 ms in High Speed Mode to less than 50 ms in High Accuracy Mode, with corresponding switching frequencies. The device operates on a voltage supply range of 6 to 36 VDC and includes PNP, push-pull, and IO-Link output circuits. It is equipped with LED indicators for power and output status, and offers protection against short circuits and reverse polarity. The sensor is designed with a PA sensing face and PA 12 housing, measures 25 mm in width and 52.4 mm in length, and weighs 36 g. It operates within a temperature range of -25 to +75 °C and is rated IP 67 for protection against dust and water ingress. The sensor is also designed to withstand significant vibration and shock, ensuring reliability in challenging environments.
