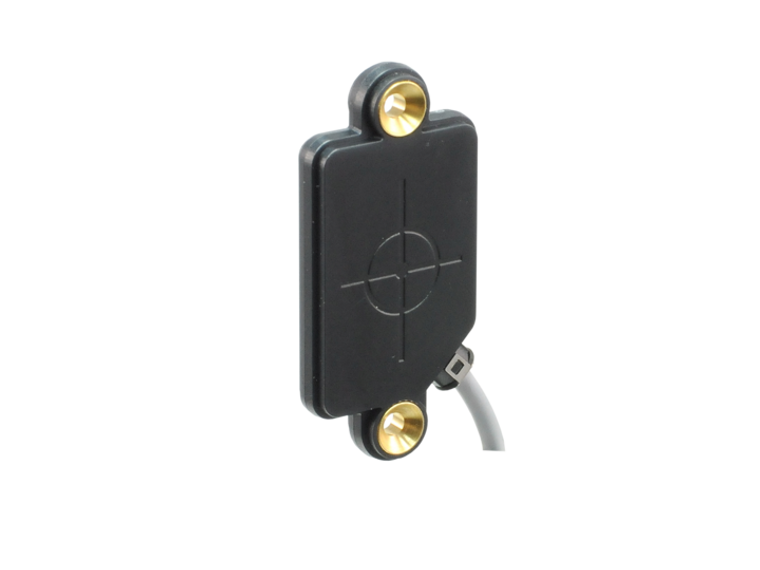

Baumer IF250.P12S-N52.NC1Z.71CV
Baumer
$178.30
The Baumer IF250.P12S-N52.NC1Z.71CV is a non-flush, rectangular proximity sensor with a nominal sensing distance of 12 mm and an assured sensing distance of up to 81% of Sn. It features a real sensing distance with a tolerance of ±10% of Sn and a temperature drift of ±10% of Sr. The sensor has a hysteresis range of 3 to 20% of Sr and is equipped with a red LED output indicator. It is designed to work with various materials, offering correction factors of 100% for mild steel, 70% for stainless steel, and 50% for aluminum. The switching frequency is 1000 Hz, and it operates within a voltage supply range of 6 to 36 VDC, with a maximum current consumption of 12 mA at no load. The output circuit is an NPN break function (NC) with a voltage drop of less than 2 VDC and an output current of 200 mA. It includes short circuit and reverse polarity protection. The sensor's housing is made of PA 12 and has a sensing face of PA, measuring 25 mm in dimension and 52.4 mm in housing length. It connects via a 2-meter cable with PUR 3 x 0.14 mm² characteristics and weighs 36 g. Suitable for operating temperatures between -25 to +75 °C and storage temperatures from -40 to +75 °C, it is IP 67 rated for protection against dust and water ingress. The sensor also meets IEC standards for vibration and shock resistance, ensuring durability and reliability in challenging environments.
- Mounting type:
- Non-flush
- Nominal sensing distance Sn:
- 12 mm
- Assured sensing distance Sa:
- ? 81 % of Sn
- Real sensing distance Sr:
- ± 10 % of Sn
- Temperature drift:
- ± 10 % of Sr
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 70 %, aluminum 50 %
- Switching frequency:
- 1000 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- PA
- Housing material:
- PA 12
- Dimension:
- 25 mm
- Housing length:
- 52.4 mm
- Connection types:
- Cable, L=2 m
- Cable characteristics:
- PUR 3 x 0.14 mm²
- Weight:
- 36 g
- Operating temperature:
- -25 +75 °C
- Storage temperature:
- -40 +75 °C
- Protection class:
- IP 67
- Vibration resistance:
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock resistance:
- IEC 60068-2-27:2009 100 g / 6 ms, 10 jolts per axis and direction
- Datasheet:
- View
