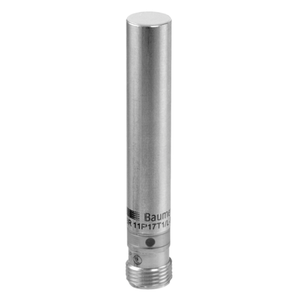

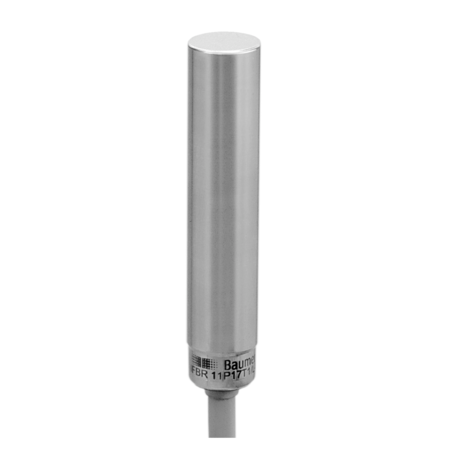

Baumer IFBR 11P37T1/L-9 11014609
Baumer
$207.70
The Baumer IFBR 11P37T1/L-9 11014609 is a flush-mounted, hygienic design proximity sensor with a nominal sensing distance of 4 mm and a hysteresis range of 2 to 15% of Sr. It features a red LED output indicator and is equipped with multiple approvals and certificates including Ecolab, EHEDG, and various EC and EU regulations, as well as FDA compliance for food contact. The sensor operates at a switching frequency of 1 kHz and has a voltage supply range of 6 to 30 VDC. It consumes a maximum of 10 mA with no load and has a PNP break function (NC) output circuit. The output current is 200 mA, reducing to less than 100 mA at cleaning temperatures. It includes short circuit and reverse polarity protection. The sensor's cylindrical smooth design uses LCP for the sensing face and stainless steel 1.4404 (V4A) for the housing, measuring 11 mm in diameter and 54 mm in length. It connects via a 2 m PVC cable and operates between -40 to +80 °C, with a higher tolerance for cleaning temperatures between 80 to 100 °C for up to 30 minutes per day. The sensor is highly durable with IP 68/69K and proTect+ ratings for protection against dust, water, and high-pressure cleaning.
- Mounting type:
- Flush
- Special type:
- Hygienic design
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab Adapted from EHEDG REGULATION (EC) 1935/2004 REGULATION (EC) 2023/2006 REGULATION (EU) 1282/2011 FDA 21 CFR § 175.300 FDA 21 CFR § 177.2600 FCN 742
- Switching frequency:
- 1 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 11 mm
- Housing length:
- 54 mm
- Connection types:
- Cable PVC, 2 m
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Datasheet:
- View
