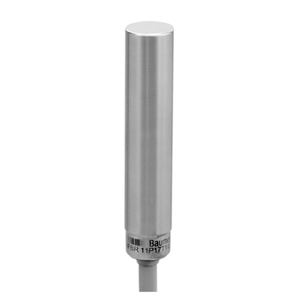

The Baumer IFBR 11P37T1/S14L-9 11014592 is a flush-mounted, hygienic design proximity sensor with a nominal sensing distance of 4 mm and adjustable hysteresis of 2 to 15% of Sr. It features a red LED output indicator and is equipped with a PNP break function (NC) output circuit. The sensor operates on a voltage supply range of 6 to 30 VDC, with a maximum current consumption of 10 mA and an output current of 200 mA, which reduces to under 100 mA at cleaning temperatures. It offers short circuit and reverse polarity protection, and is designed with a cylindrical smooth stainless steel housing (1.4404/V4A) and an LCP sensing face. The sensor has a diameter of 11 mm, a length of 60 mm, and connects via an M12 connector. It operates within a temperature range of -40 to +80 °C and can withstand cleaning temperatures between 80 to 100 °C for up to 30 minutes per day. The sensor is highly durable, rated IP 68/69K and proTect+, ensuring protection against dust, high-pressure water, and prolonged immersion under pressure. It meets various regulatory approvals, including Ecolab, EHEDG, and multiple FDA and EC regulations, making it suitable for applications requiring stringent hygiene standards.
- Mounting type:
- Flush
- Special type:
- Hygienic design
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab Adapted from EHEDG REGULATION (EC) 1935/2004 REGULATION (EC) 2023/2006 REGULATION (EU) 1282/2011 FDA 21 CFR § 175.300 FDA 21 CFR § 177.2600 FCN 742
- Switching frequency:
- 1 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 11 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Datasheet:
- View
