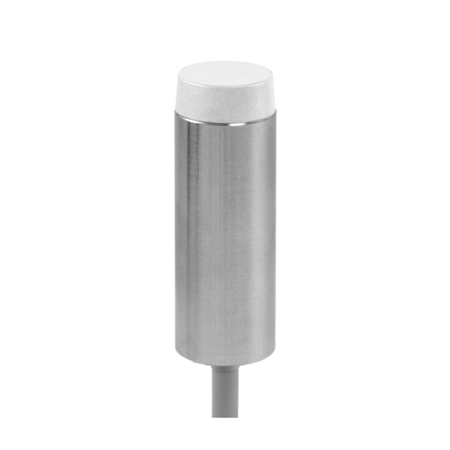

The Baumer IFBR 17N13T1/L-9 11014623 is a non-flush, cylindrical smooth sensor designed for hygienic applications, featuring a nominal sensing distance of 12 mm and a hysteresis range of 2 to 15% of Sr. It includes a red LED output indicator and operates with a switching frequency of 500 Hz. This sensor supports a voltage supply range of 6 to 30 VDC, with a maximum current consumption of 10 mA when no load is present. It offers an NPN make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current of 200 mA, which reduces to less than 100 mA at cleaning temperatures. Enhanced safety features include short circuit and reverse polarity protection. The sensor is constructed with an LCP sensing face and a stainless steel 1.4404 (V4A) housing, measuring 17 mm in diameter and 55 mm in length. It connects via a 2-meter PVC cable and operates within a temperature range of -40 to +80 °C, withstanding cleaning temperatures between 80 to 100 °C for up to 30 minutes per day. It boasts an IP 68/69K protection class and proTect+ sealing, ensuring durability and reliability in demanding environments. The sensor is compliant with multiple regulations, including Ecolab, EHEDG, and various EC and EU regulations, as well as FDA standards for food contact.
- Mounting type:
- Non-flush
- Special type:
- Hygienic design
- Nominal sensing distance Sn:
- 12 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab Adapted from EHEDG REGULATION (EC) 1935/2004 REGULATION (EC) 2023/2006 REGULATION (EU) 1282/2011 FDA 21 CFR § 175.300 FDA 21 CFR § 177.2600 FCN 742
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 17 mm
- Housing length:
- 55 mm
- Connection types:
- Cable PVC, 2 m
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Datasheet:
- View
