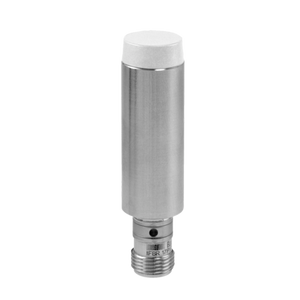

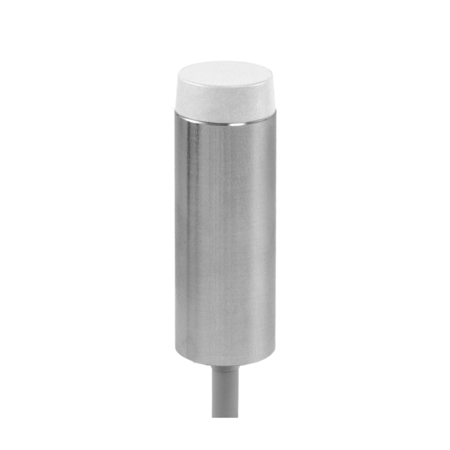

The Baumer IFBR 17P33T1/L-9 11014622 is a non-flush, hygienic design proximity sensor with a nominal sensing distance of 12 mm and a hysteresis range of 2 to 15% of Sr. It features a red LED output indicator and is equipped with a PNP break function (NC) output circuit. The sensor operates on a voltage supply range of 6 to 30 VDC, with a maximum current consumption of 10 mA and an output current of 200 mA, which reduces to less than 100 mA at cleaning temperatures. It includes short circuit and reverse polarity protection. The sensor's cylindrical smooth design is made from LCP for the sensing face and stainless steel 1.4404 (V4A) for the housing, ensuring durability and resistance to harsh environments. It has a diameter of 17 mm and a length of 55 mm, and connects via a 2-meter PVC cable. The operating temperature ranges from -40 to +80 °C, with a higher tolerance for cleaning temperatures between 80 and 100 °C for up to 30 minutes per day. The sensor is highly protected with an IP 68/69K rating and proTect+ sealing, making it suitable for stringent hygiene requirements in food and pharmaceutical processing. It meets various regulatory approvals, including Ecolab, EHEDG, and multiple EC and FDA regulations.
- Mounting type:
- Non-flush
- Special type:
- Hygienic design
- Nominal sensing distance Sn:
- 12 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab Adapted from EHEDG REGULATION (EC) 1935/2004 REGULATION (EC) 2023/2006 REGULATION (EU) 1282/2011 FDA 21 CFR § 175.300 FDA 21 CFR § 177.2600 FCN 742
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 17 mm
- Housing length:
- 55 mm
- Connection types:
- Cable PVC, 2 m
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Datasheet:
- View
