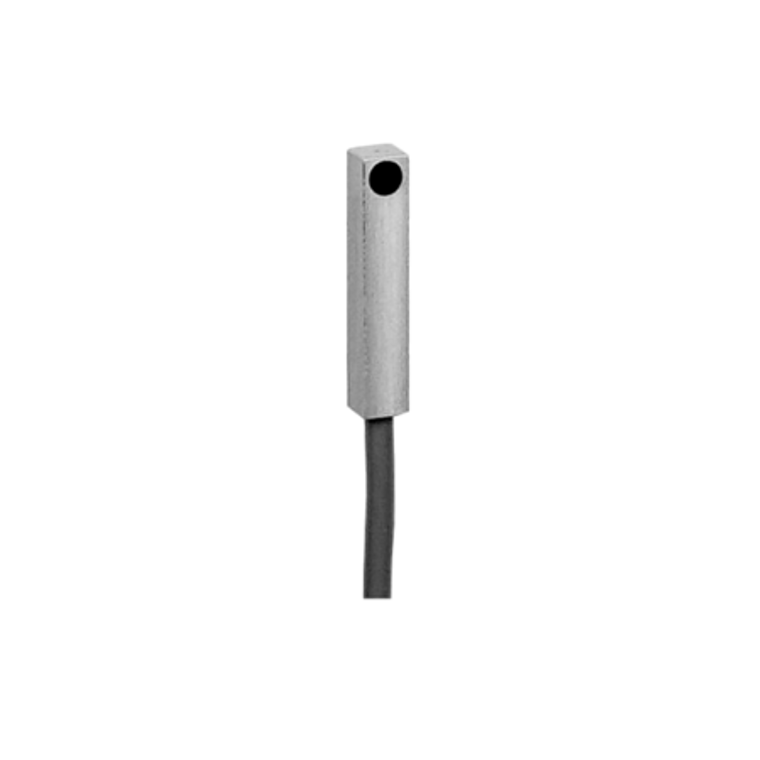

The Baumer IFFM 04P1501/O1L 10140707 is a flush-mounted inductive sensor with a nominal sensing distance of 0.8 mm and adjustable hysteresis between 2 to 20% of Sr. It features a red LED output indicator on the backside and operates at a switching frequency of 3 kHz. The sensor is powered by a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 12 mA when no load is present. It includes a PNP make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current capacity of 100 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is designed with a rectangular stainless steel housing and an EP sensing face. Dimensions include a 4 mm width and a 22 mm housing length, and it connects via a 2-meter cable. Suitable for operating temperatures ranging from -25 to +75 °C, it is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 0.8 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- LED red (backside)
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- EP
- Housing material:
- Stainless steel
- Dimension:
- 4 mm
- Housing length:
- 22 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
