Description

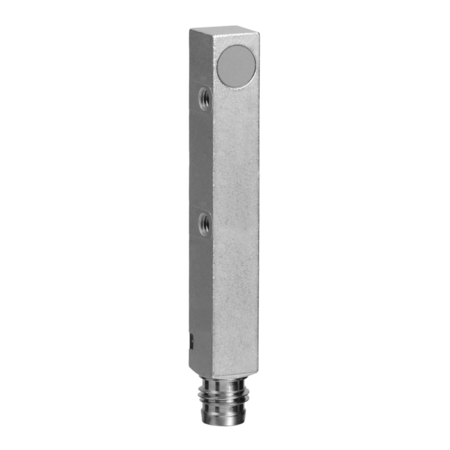

The Baumer IFFM 08N1701/O1S35L 10224260 is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and a hysteresis range of 3 to 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 36 VDC and has a maximum no-load current consumption of 12 mA. It includes an NPN make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current of 200 mA. The sensor is equipped with short circuit and reverse polarity protection. Its rectangular design incorporates a PBT sensing face and a die-cast zinc nickel-plated housing, measuring 8 mm in dimension and 59.4 mm in housing length. It connects via an M8 connector and operates within a temperature range of -25 to +75 °C. The sensor is rated at protection class IP 67. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFFM-08N1701-O1S35L_EN_20221110_DS.pdf?mediaPK=9056311509022).
