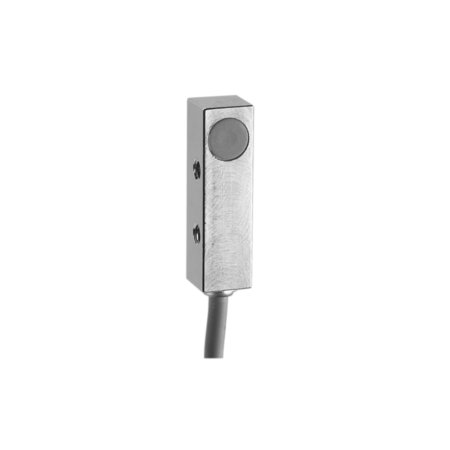

Baumer IFFM 08N1702/O1L 10124010
Baumer
$197.00
The Baumer IFFM 08N1702/O1L 10124010 is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and adjustable hysteresis between 3% and 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 12 mA when no load is present. It includes an NPN make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced safety features include short circuit and reverse polarity protection. The sensor's design is rectangular, constructed with a PBT sensing face and a brass nickel-plated housing, measuring 8 mm in diameter and 28.5 mm in length. It connects via a 2-meter cable and operates within a temperature range of -25 to +75 °C. The device is IP 67 rated, indicating a high level of protection against dust and water ingress. For more detailed information, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFFM-08N1702-O1L_EN_20221110_DS.pdf?mediaPK=9056330285086).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 2 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 8 mm
- Housing length:
- 28.5 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
