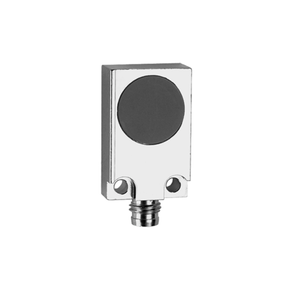

Baumer IFFM 20N37A3/S35L 10150206 is a flush-mounted inductive sensor with an 8 mm nominal sensing distance and adjustable hysteresis between 3% and 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 500 Hz. The sensor supports a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 10 mA with no load. It includes an NPN break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced safety features include short circuit and reverse polarity protection. The sensor's design is rectangular, constructed with a PBT sensing face and a brass nickel-plated housing, measuring 20 mm in dimension and 32 mm in housing length. It connects via an M8 connector and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated, indicating a high level of protection against dust and water ingress.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 20 mm
- Housing length:
- 32 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
