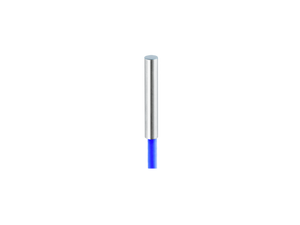

Baumer IFR 05.82.05 is a flush-mounted inductive sensor with a nominal sensing distance of 0.8 mm and a switching frequency of 5 kHz. It operates on a normal voltage of 8.2 VDC within a supply range of 6 to 30 VDC. The sensor features low current consumption, with less than 4 mA when undamped and less than 1 mA when damped, and a maximum of 10 mA with no load. It utilizes a NAMUR output circuit and has a residual ripple of less than 10% Vs. The design is cylindrical threaded, made with a PBT sensing face and a stainless steel housing, measuring 5 mm in diameter and 25 mm in length. It includes a 2-meter cable for connections and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and water ingress. For more details, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFR-05.82.05_EN_20230831_DS.pdf?mediaPK=9095610990622).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 0.8 mm
- Switching frequency:
- 5 kHz
- Normal operating voltage:
- 8.2 VDC
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption undamped:
- > 4 mA
- Current consumption damped:
- < 1 mA
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NAMUR
- Residual ripple:
- < 10 % Vs
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 5 mm
- Housing length:
- 25 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
