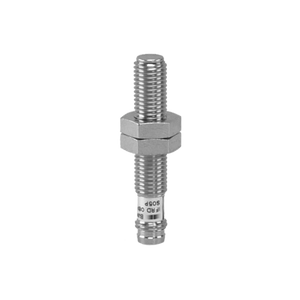

Baumer IFRD 06N37A1/S35L 10154703 is a quasi-flush, cylindrical smooth proximity sensor with a full metal housing designed for durability and reliability in demanding environments. It features a nominal sensing distance of 2 mm and a hysteresis range of 2 to 20% of Sr. Equipped with a 3-port LED red output indicator, this sensor operates at a switching frequency of 150 Hz and supports a voltage supply range of 10 to 30 VDC. The maximum current consumption is 20 mA with an NPN break function (NC) output circuit and a voltage drop of less than 2 VDC. It can handle an output current of up to 200 mA and includes short circuit and reverse polarity protection. The sensor's housing and sensing face are made of stainless steel 1.4404 (V4A), ensuring robustness with an operating pressure of up to 20 bar. Dimensions include a 6.5 mm diameter and a 46 mm housing length, with an M8 connector for connectivity. It operates within a temperature range of -25 to +75 °C and offers a high protection class of IP 68/67 for the sensing face and sensor.
- Mounting type:
- Quasi-flush
- Special type:
- Full metal housing (DuroProx)
- Nominal sensing distance Sn:
- 2 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 150 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- Stainless steel 1.4404 (V4A)
- Housing material:
- Stainless steel 1.4404 (V4A)
- Operating pressure static:
- < 20 bar
- Dimension:
- 6.5 mm
- Housing length:
- 46 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 68/67 (sensing face/sensor)
- Datasheet:
- View
