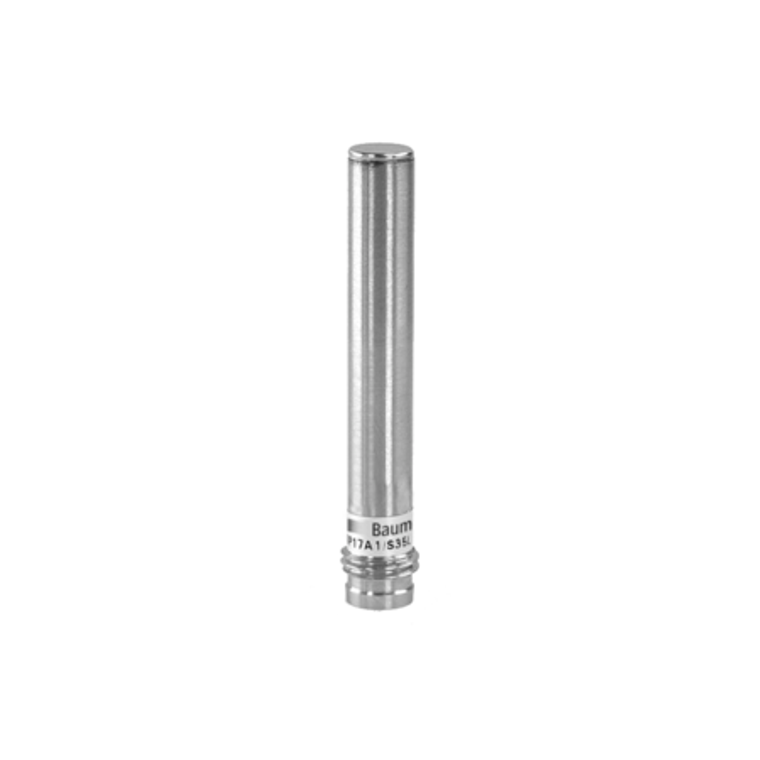

The Baumer IFRD 06P17T1/S35 10154704 is a quasi-flush, cylindrical smooth proximity sensor with a full metal housing designed for high-temperature environments. It features a nominal sensing distance of 2 mm and a hysteresis range of 2 to 20% of Sr. The sensor operates at a switching frequency of 150 Hz and requires a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 20 mA when no load is present. It includes a PNP make function (NO) output circuit, supports an output current of 100 mA, and ensures safety with short circuit and reverse polarity protection. The sensor's sensing face and housing are made from durable stainless steel 1.4404 (V4A), capable of withstanding operating pressures up to 20 bar. Dimensions include a 6.5 mm diameter and a 46 mm housing length, with an M8 connector for connections. It operates effectively in temperatures ranging from -25 to +100 °C and boasts an IP 69K protection class for high resistance against dust and water ingress.
- Mounting type:
- Quasi-flush
- Special type:
- Full metal housing (DuroProx) High temperature
- Nominal sensing distance Sn:
- 2 mm
- Hysteresis:
- 2 20 % of Sr
- Switching frequency:
- 150 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- Stainless steel 1.4404 (V4A)
- Housing material:
- Stainless steel 1.4404 (V4A)
- Operating pressure static:
- < 20 bar
- Dimension:
- 6.5 mm
- Housing length:
- 46 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +100 °C
- Protection class:
- IP 69K
