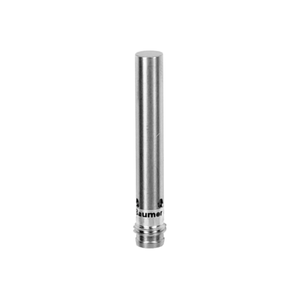

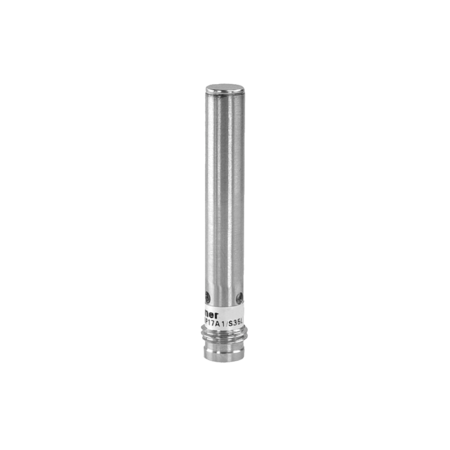

Baumer IFRD 06P37A1/S35L 10154701 is a quasi-flush, cylindrical smooth proximity sensor with a full metal housing designed for durability (DuroProx). It features a nominal sensing distance of 2 mm and a hysteresis range of 2 to 20% of Sr. Equipped with a 3-port LED red output indicator, it operates at a switching frequency of 150 Hz. The sensor supports a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 20 mA at no load and an output current of 200 mA. It includes a PNP break function (NC) output circuit with a voltage drop of less than 2 VDC. The sensor offers short circuit and reverse polarity protection. Constructed from stainless steel 1.4404 (V4A) for both the sensing face and housing, it can withstand operating pressures up to 20 bar. Dimensions include a 6.5 mm diameter and a 46 mm housing length, with an M8 connector for connections. It operates within a temperature range of -25 to +75 °C and is rated IP 68/67 for protection against dust and water ingress.
- Mounting type:
- Quasi-flush
- Special type:
- Full metal housing (DuroProx)
- Nominal sensing distance Sn:
- 2 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 150 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- Stainless steel 1.4404 (V4A)
- Housing material:
- Stainless steel 1.4404 (V4A)
- Operating pressure static:
- < 20 bar
- Dimension:
- 6.5 mm
- Housing length:
- 46 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 68/67 (sensing face/sensor)
- Datasheet:
- View
