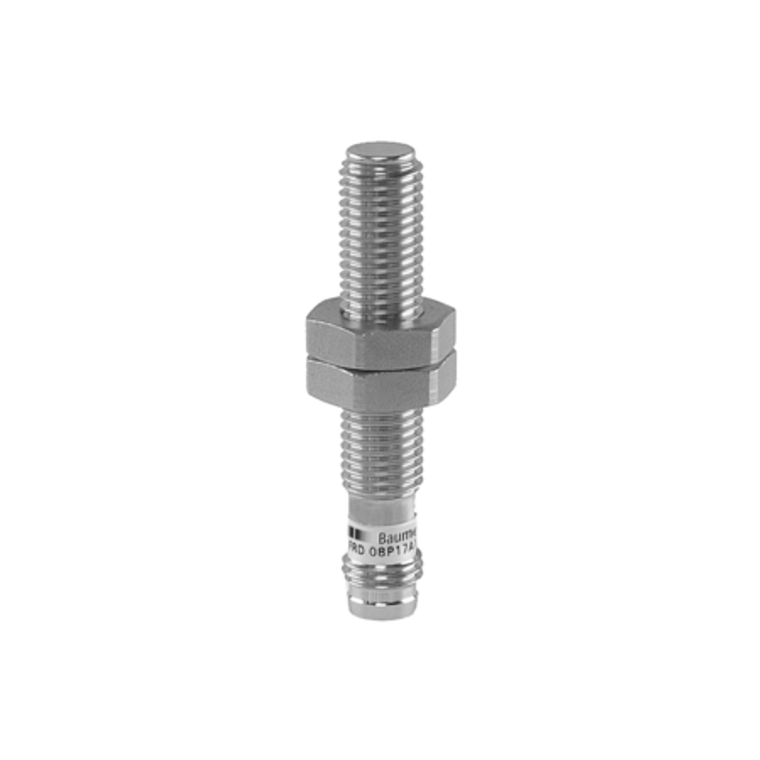

The Baumer IFRD 08P37T1/S35 10149271 is a quasi-flush, cylindrical threaded proximity sensor with a full metal housing designed for high temperature environments. It features a nominal sensing distance of 2 mm and a hysteresis range of 2 to 20% of Sr. The sensor operates with a switching frequency of 150 Hz and a voltage supply range of 10 to 30 VDC. It consumes a maximum of 20 mA with no load and supports a PNP break function (NC) output circuit. The voltage drop is less than 2 VDC, and the output current capacity is 100 mA. It includes short circuit and reverse polarity protection. The sensor is made from stainless steel 1.4404 (V4A) for both the sensing face and housing, ensuring durability and resistance to harsh conditions. It can withstand operating pressures up to 20 bar and temperatures ranging from -25 to +100 °C. The sensor has a dimension of 8 mm in diameter and a housing length of 46 mm, and it connects via an M8 connector. It is rated IP 69K for high-level protection against ingress.
- Mounting type:
- Quasi-flush
- Special type:
- Full metal housing (DuroProx) High temperature
- Nominal sensing distance Sn:
- 2 mm
- Hysteresis:
- 2 20 % of Sr
- Switching frequency:
- 150 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- Stainless steel 1.4404 (V4A)
- Housing material:
- Stainless steel 1.4404 (V4A)
- Operating pressure static:
- < 20 bar
- Dimension:
- 8 mm
- Housing length:
- 46 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +100 °C
- Protection class:
- IP 69K
