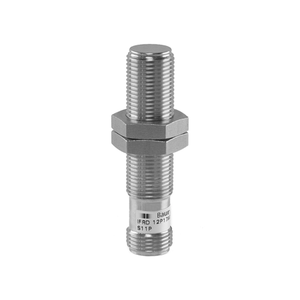

The Baumer IFRD 12N37T3/S14 10149270 is a quasi-flush, cylindrical threaded inductive sensor with a full metal housing designed for high temperature environments. It features a nominal sensing distance of 4 mm and a hysteresis range of 2 to 20% of Sr. The sensor operates at a switching frequency of 100 Hz and requires a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 14 mA when no load is present. It includes an NPN break function (NC) output circuit, supports an output current of 100 mA, and ensures safety with short circuit and reverse polarity protection. The sensor's sensing face and housing are made from durable stainless steel 1.4404 (V4A), capable of withstanding operating pressures up to 20 bar. Dimensions include a 12 mm diameter and a 50 mm housing length, with an M12 connector type for connections. It operates effectively within a temperature range of -25 to +100 °C and boasts an IP 69K protection class for high resistance against dust and water ingress.
- Mounting type:
- Quasi-flush
- Special type:
- Full metal housing (DuroProx) High temperature
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 2 20 % of Sr
- Switching frequency:
- 100 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 14 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- Stainless steel 1.4404 (V4A)
- Housing material:
- Stainless steel 1.4404 (V4A)
- Operating pressure static:
- < 20 bar
- Dimension:
- 12 mm
- Housing length:
- 50 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +100 °C
- Protection class:
- IP 69K
- Datasheet:
- View
