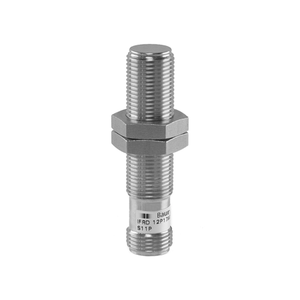

The Baumer IFRD 12P17T3/S14 10149185 is a quasi-flush, cylindrical threaded inductive sensor with a full metal housing designed for high temperature environments. It features a nominal sensing distance of 4 mm and a hysteresis of 2 to 20% of Sr. The sensor operates with a switching frequency of 100 Hz and a voltage supply range of 10 to 30 VDC. It consumes a maximum of 14 mA with no load and offers a PNP make function (NO) output circuit. The voltage drop is less than 2 VDC, and the output current capacity is 100 mA. It includes short circuit and reverse polarity protection. The sensor is made from stainless steel 1.4404 (V4A) for both the sensing face and housing, ensuring durability and resistance to harsh conditions. It can withstand operating pressures up to 20 bar and temperatures ranging from -25 to +100 °C. The sensor has a housing length of 50 mm, a diameter of 12 mm, and uses an M12 connector for connections. It is rated IP 69K for high-level protection against ingress.
- Mounting type:
- Quasi-flush
- Special type:
- Full metal housing (DuroProx) High temperature
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 2 20 % of Sr
- Switching frequency:
- 100 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 14 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- Stainless steel 1.4404 (V4A)
- Housing material:
- Stainless steel 1.4404 (V4A)
- Operating pressure static:
- < 20 bar
- Dimension:
- 12 mm
- Housing length:
- 50 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +100 °C
- Protection class:
- IP 69K
