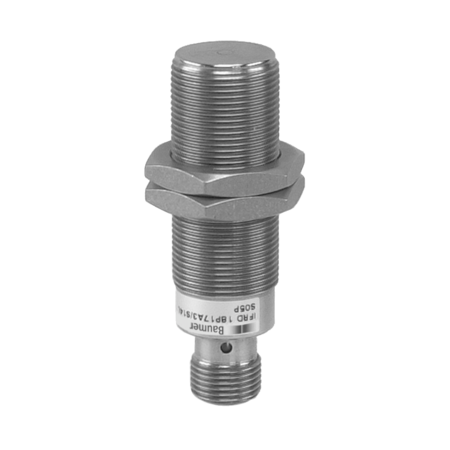

Baumer IFRD 18N17A3/S14L 10150454
Baumer
The Baumer IFRD 18N17A3/S14L 10150454 is a quasi-flush, cylindrical threaded proximity sensor with a full metal housing designed for durability in harsh environments. It features a nominal sensing distance of 6 mm and a hysteresis of 2 to 20% of Sr. Equipped with a 3-port LED red output indicator, it operates at a switching frequency of 100 Hz. The sensor supports a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 14 mA when no load is present. It includes an NPN make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Safety features include short circuit and reverse polarity protection. The sensor's housing and sensing face are made from stainless steel 1.4404 (V4A), ensuring robustness and resistance to corrosion. It can withstand operating pressures up to 20 bar and temperatures ranging from -25 to +75 °C. The sensor has a dimension of 18 mm in diameter and a housing length of 60 mm, with an M12 connector type for connections. It offers high protection classes of IP 68/67 for the sensing face and sensor body, respectively.
- Mounting type:
- Quasi-flush
- Special type:
- Full metal housing (DuroProx)
- Nominal sensing distance Sn:
- 6 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 100 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 14 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- Stainless steel 1.4404 (V4A)
- Housing material:
- Stainless steel 1.4404 (V4A)
- Operating pressure static:
- < 20 bar
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 68/67 (sensing face/sensor)
