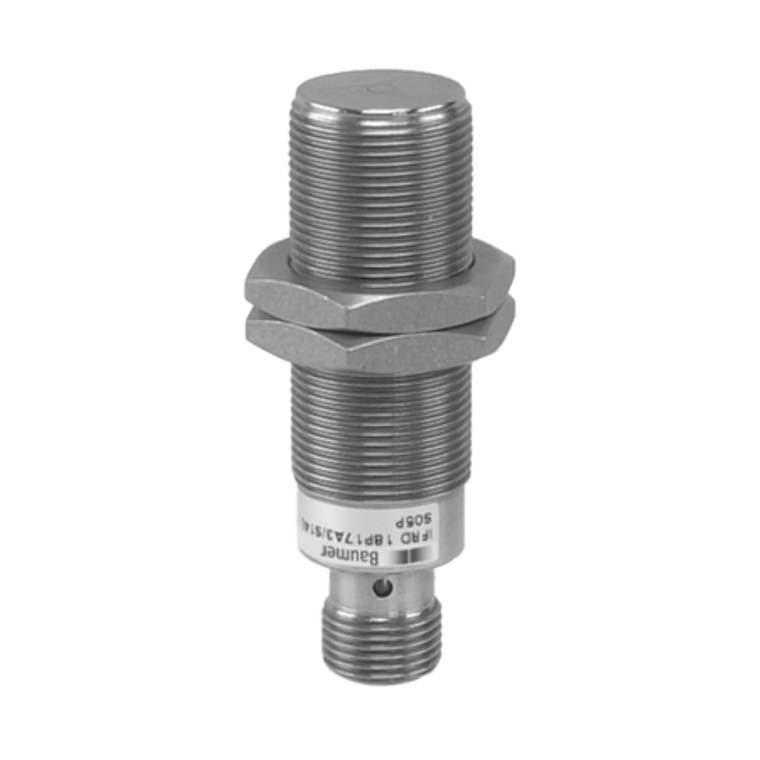

The Baumer IFRD 18P17A3/S14L 10150360 is a quasi-flush, cylindrical threaded proximity sensor with a full metal housing designed for durability in harsh environments. It features a nominal sensing distance of 6 mm and adjustable hysteresis of 2 to 20% of Sr. Equipped with a PNP make function (NO) output circuit, it supports a switching frequency of 100 Hz and can handle a voltage supply range of 10 to 30 VDC. The sensor has a maximum current consumption of 14 mA at no load, with an output current capacity of 200 mA. It includes short circuit and reverse polarity protection, ensuring reliable operation. The sensor's housing and sensing face are made from robust stainless steel 1.4404 (V4A), capable of withstanding operating pressures up to 20 bar. It has a housing length of 60 mm and a diameter of 18 mm, and connects via an M12 connector. The operating temperature range is from -25 to +75 °C, and it offers high protection ratings of IP 68/67 for the sensing face and sensor body, respectively.
- Mounting type:
- Quasi-flush
- Special type:
- Full metal housing (DuroProx)
- Nominal sensing distance Sn:
- 6 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 100 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 14 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- Stainless steel 1.4404 (V4A)
- Housing material:
- Stainless steel 1.4404 (V4A)
- Operating pressure static:
- < 20 bar
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 68/67 (sensing face/sensor)
