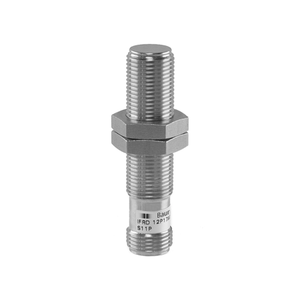

The Baumer IFRD 18P17T3/S14 10150449 is a quasi-flush, cylindrical threaded proximity sensor with a full metal housing designed for high-temperature environments. It features a nominal sensing distance of 6 mm and a hysteresis of 2 to 20% of Sr. The sensor operates at a switching frequency of 100 Hz and requires a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 14 mA. It includes a PNP make function (NO) output circuit, supports an output current of 100 mA, and has built-in short circuit and reverse polarity protection. The sensor's sensing face and housing are made of stainless steel 1.4404 (V4A), ensuring durability and resistance to harsh conditions, with an operating pressure of up to 20 bar. Dimensions include an 18 mm diameter and a 60 mm housing length, and it connects via an M12 connector. It operates within a temperature range of -25 to +100 °C and meets IP 69K protection class standards for high-pressure, high-temperature washdown applications.
- Mounting type:
- Quasi-flush
- Special type:
- Full metal housing (DuroProx) High temperature
- Nominal sensing distance Sn:
- 6 mm
- Hysteresis:
- 2 20 % of Sr
- Switching frequency:
- 100 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 14 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- Stainless steel 1.4404 (V4A)
- Housing material:
- Stainless steel 1.4404 (V4A)
- Operating pressure static:
- < 20 bar
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +100 °C
- Protection class:
- IP 69K
- Datasheet:
- View
