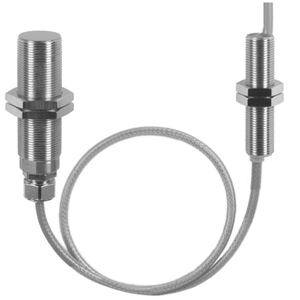

The Baumer IFRH 18P1501/L 10143354 is a high-temperature, flush-mounting inductive sensor with a nominal sensing distance of 5 mm and adjustable hysteresis of 2 to 20% of Sr. It operates at a switching frequency of 1 kHz and is designed for a voltage supply range of 6 to 30 VDC, consuming a maximum of 12 mA with no load. The sensor features a PNP make function (NO) output circuit, supporting an output current of up to 200 mA. It includes short circuit and reverse polarity protection. The cylindrical threaded design uses PBT for the sensing face and stainless steel for the housing, measuring 18 mm in diameter and 71 mm in length. It connects via a 2-meter cable and operates within a temperature range of -25 to +180 °C. The sensor is IP 67 rated for protection against dust and water ingress. For more details, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRH-18P1501-L_EN_20230830_DS.pdf?mediaPK=9095398621214).
- Mounting type:
- Flush
- Special type:
- High temperature
- Nominal sensing distance Sn:
- 5 mm
- Hysteresis:
- 2 20 % of Sr
- Switching frequency:
- 1 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 18 mm
- Housing length:
- 71 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +180 °C
- Protection class:
- IP 67
- Datasheet:
- View
