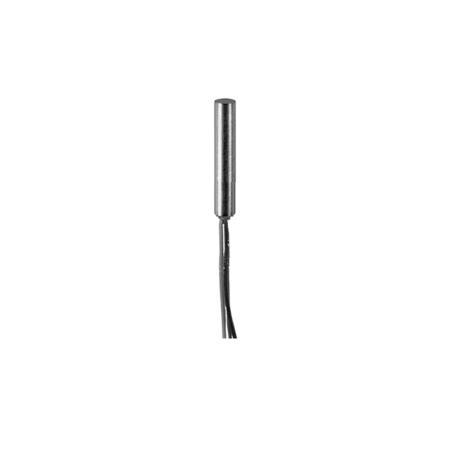

The Baumer IFRM 03N1503/Q 10138311 is a flush-mounted inductive sensor with a nominal sensing distance of 0.8 mm and adjustable hysteresis between 2 to 20% of Sr. It operates at a switching frequency of 3 kHz and requires a voltage supply range of 6 to 30 VDC, consuming a maximum of 12 mA with no load. This sensor features an NPN make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's design is cylindrical and smooth, made with a POM sensing face and a stainless steel housing, measuring 3 mm in diameter and 16 mm in length. It connects via 0.5 m wires and operates within a temperature range of -25 to +75 °C. The sensor is rated IP 67 for protection against dust and immersion. For more details, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-03N1503-Q_EN_20221109_DS.pdf?mediaPK=9055864094750).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 0.8 mm
- Hysteresis:
- 2 20 % of Sr
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- POM
- Housing material:
- Stainless steel
- Dimension:
- 3 mm
- Housing length:
- 16 mm
- Connection types:
- Wires, 0,5 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
