Baumer IFRM 03P1501/KS35L 10138545
Baumer
$274.80

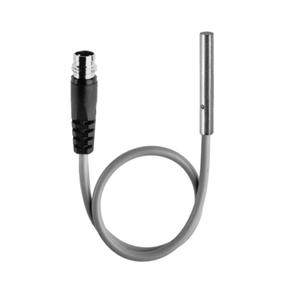

Baumer IFRM 03P1501/KS35L 10138545 is a flush-mounted inductive sensor with a nominal sensing distance of 0.8 mm and adjustable hysteresis between 2% and 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 3 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum no-load current consumption of 12 mA. It includes a PNP make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current of 100 mA. Equipped with short circuit and reverse polarity protection, this sensor is designed with a cylindrical smooth stainless steel housing and a POM sensing face. It measures 3 mm in diameter and 22 mm in housing length, and connects via a flylead connector M8. The operating temperature range is from -25 to +75 °C, and it is rated IP 67 for protection against dust and water ingress. [View Datasheet](https://www.baumer.com/medias/__secure__/Baumer_IFRM-03P1501-KS35L_EN_20221109_DS.pdf?mediaPK=9055867863070).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 0.8 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- POM
- Housing material:
- Stainless steel
- Dimension:
- 3 mm
- Housing length:
- 22 mm
- Connection types:
- Flylead connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
