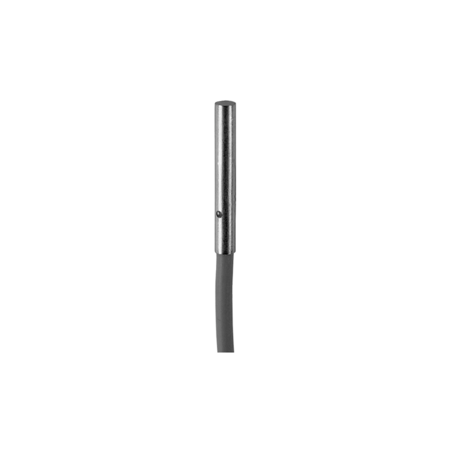

The Baumer IFRM 03P1501/L 10134726 is a flush-mounted inductive sensor with a nominal sensing distance of 0.8 mm and adjustable hysteresis between 2 to 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 3 kHz. The sensor is designed for a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA when unloaded. It includes a PNP make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current capacity of 100 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is built with a POM sensing face and a stainless steel housing, measuring 3 mm in diameter and 22 mm in length. It connects via a 2-meter cable and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated, ensuring protection against dust and water ingress. For more details, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-03P1501-L_EN_20221109_DS.pdf?mediaPK=9055868387358).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 0.8 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- POM
- Housing material:
- Stainless steel
- Dimension:
- 3 mm
- Housing length:
- 22 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
