Description

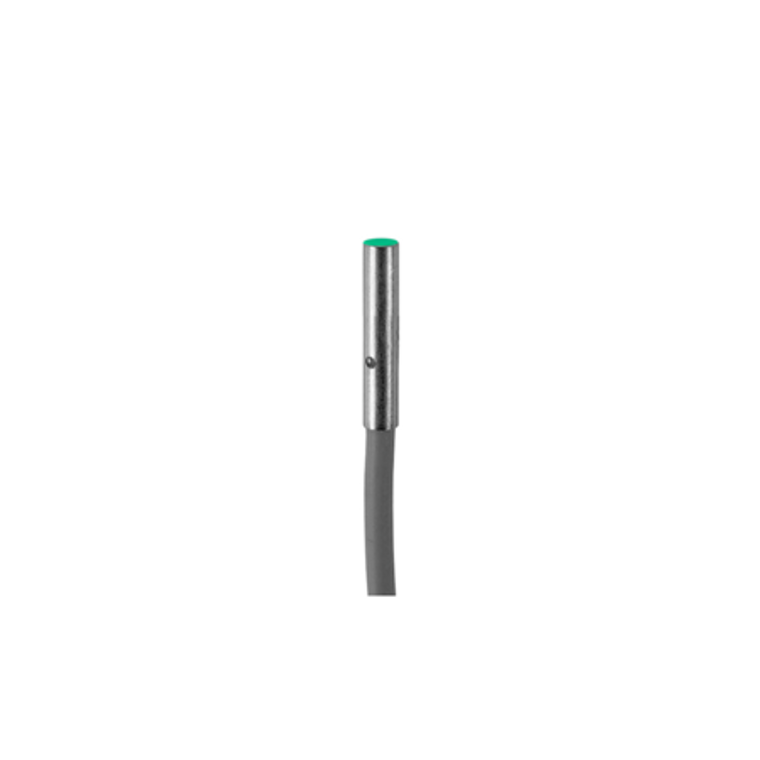

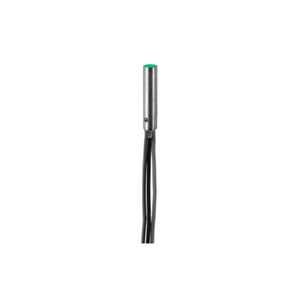

Baumer IFRM 03P1713/L 11166541 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm. It features a temperature drift of -5% to +10% between +10 to +60°C and -5% to +15% between -10 to +70°C. The sensor has a hysteresis range of 2 to 20% of Sr and is equipped with a red LED output indicator. It operates at a switching frequency of 4 kHz and requires a voltage supply range of 6 to 30 VDC, with a maximum current consumption of 10 mA when no load is present. The output circuit is a PNP make function (NO) with a voltage drop of less than 2 VDC and an output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's design is cylindrical and smooth, made with a POM sensing face and a stainless steel housing. It measures 3 mm in diameter and 16 mm in housing length, and includes a 2-meter cable for connection. Suitable for operating temperatures from -10 to +70°C, it is rated IP 67 for protection against dust and immersion.
