Baumer IFRM 03P1713/QL 11166744
Baumer

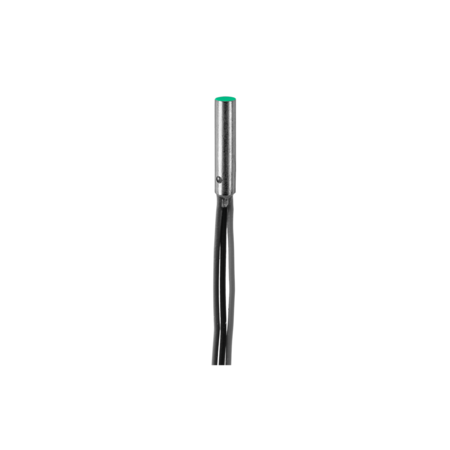

Baumer IFRM 03P1713/QL 11166744 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm. It features a temperature drift of -5% to +10% between +10 to +60°C and -5% to +15% between -10 to +70°C. The sensor has a hysteresis range of 2 to 20% of Sr and includes a red LED output indicator. It operates at a switching frequency of 4 kHz and requires a voltage supply range of 6 to 30 VDC, with a maximum current consumption of 10 mA when no load is present. The output circuit is a PNP make function (NO) with a voltage drop of less than 2 VDC and an output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's design is cylindrical smooth, made with a POM sensing face and stainless steel housing, measuring 3 mm in diameter and 12 mm in housing length. It connects via 0.5 m wires and operates within a temperature range of -10 to +70°C. The sensor is rated IP 67 for protection against dust and immersion.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Temperature drift:
- - 5 % / + 10 % (+10 ... +60 °C) - 5 % / + 15 % (-10 ... +70 °C)
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 4 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- POM
- Housing material:
- Stainless steel
- Dimension:
- 3 mm
- Housing length:
- 12 mm
- Connection types:
- Wires, 0,5 m
- Operating temperature:
- -10 +70 °C
- Protection class:
- IP 67
