Baumer IFRM 04N15A3/S35L 10140392
Baumer

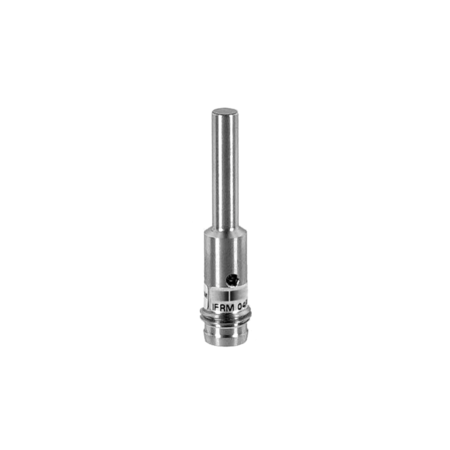

The Baumer IFRM 04N15A3/S35L 10140392 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm and adjustable hysteresis between 2 to 20% of Sr. It features a high switching frequency of 5 kHz and operates within a voltage supply range of 6 to 30 VDC. The sensor consumes a maximum of 12 mA with no load and supports an output current of 200 mA. It includes a 3-port LED red output indicator and utilizes an NPN make function (NO) output circuit with a voltage drop of less than 2 VDC. Designed for durability, it has a cylindrical smooth stainless steel housing, an LCP sensing face, and is equipped with short circuit and reverse polarity protection. The sensor's dimensions are 4 mm in diameter and 36 mm in housing length, and it connects via an M8 connector. Suitable for operating temperatures ranging from -25 to +75 °C, it is IP 67 rated for protection against dust and water ingress.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 4 mm
- Housing length:
- 36 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
