Description

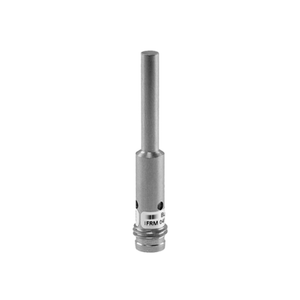

Baumer IFRM 04N17A1/KS35PL 11082459 is a flush-mounted inductive sensor with a nominal sensing distance of 1.6 mm and adjustable hysteresis between 2 to 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 3 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum no-load current consumption of 12 mA. It includes an NPN make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current of 100 mA. Enhanced with short circuit and reverse polarity protection, this sensor is designed with a cylindrical smooth stainless steel housing and an LCP sensing face. It measures 4 mm in diameter and 25 mm in housing length, and connects via a flylead connector M8. Suitable for operating temperatures from -25 to +75 °C, it is IP 67 rated for protection against dust and immersion.
